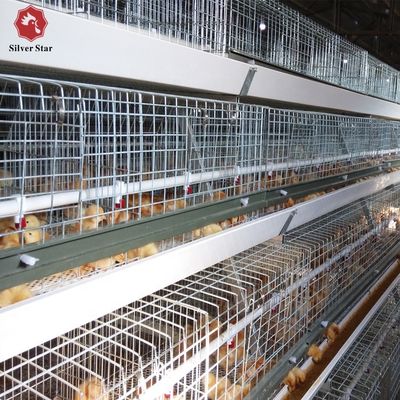

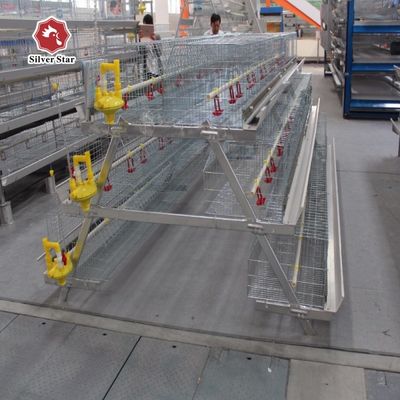

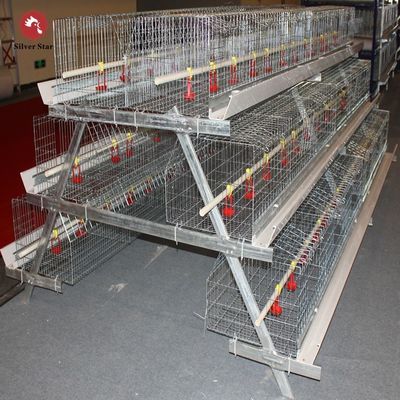

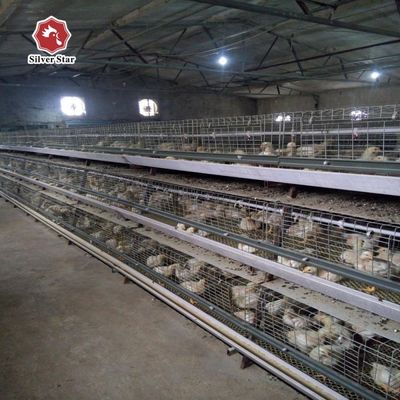

Best Price A Type Broiler Cage System Automatic A Type Broiler Cage for 1000–50000 Chickens
商品の詳細
| 材料 | Q235 溶融亜鉛めっき鋼板（亜鉛メッキ：275～500g/m²） | 利用可能な階層 | 3段、4段、5段、6段 |
|---|---|---|---|
| 対象鳥 | ブロイラー/フライヤー/肉用鶏 | 給餌方法 | 自動走行ホッパー・サイロシステム |
| 排泄物除去タイプ | 耐久性の高いPPベルトシステム | 寿命 | 15～20歳 |
| 飼料換算率 | 最適化されたFCR | 死亡率 | < 3% |
| 飲むシステム | 360°ステンレス製ニップルドリンカー | 水薬 | 精密メディケーターと圧力調整器 |
| 肥料ベルトの材質 | 厚くて丈夫なポリプロピレン (PP) | 気候制御 | 負圧排気ファン、冷却パッド、吸気口 |
| 収穫システム | 引き出し式底部メッシュ | ストッキングの密度 | 3～4倍に増やす |
| 労働者の能力 | 1 人の作業員が最大 50,000 頭のブロイラーを管理 |
製品の説明
H-Type Automated Broiler Cage System
Our H-Type Automated Broiler Cage System is the ultimate solution for large-scale, commercial meat chicken farming. Compared to traditional floor rearing, this multi-tier vertical system optimizes poultry house space, allowing you to increase stocking density by 3 to 4 times within the same land area.
By integrating precision environment control, automated feeding, and advanced manure removal, the system ensures rapid broiler weight gain, an exceptional Feed Conversion Ratio (FCR), and maximum biosecurity.
Specifications
| Parameter / Specifications | Details |
|---|---|
| Material | Q235 Hot-Dip Galvanized Steel (Zinc Coating: 275-500g/m²) |
| Tiers Available | 3 Tiers, 4 Tiers, 5 Tiers, 6 Tiers |
| Applicable Birds | Broilers / Fryers / Meat Chickens |
| Feeding Method | Automatic Traveling Hopper / Silo System |
| Manure Removal Type | Heavy-duty PP Belt System |
| Lifespan | 15 - 20 Years |
| Certification | ISO9001 / CE / SGS |
Key Benefits
- Higher ROI: Turnkey automation means one worker can easily manage a poultry shed of up to 50,000 broilers.
- Superior Hygiene: Seamless manure cleaning cuts down the risk of Coccidiosis and other bacterial infections.
- Uniform Growth: Equal access to feed and water results in highly uniform market weights for your flock.
Core Advantages
Optimized FCR (Feed Conversion Ratio)
Restricted unnecessary bird movement inside the specialized cages allows broilers to convert feed into high-quality muscle mass much faster and more efficiently.
Automatic Broiler Harvesting System
Equipped with a flexible, pull-out bottom mesh. When the broilers reach market weight, the system automatically transfers the mature birds onto the collection belt for stress-free, injury-free, and rapid harvesting--reducing labor costs by over 80%.
Superior Biosecurity & Low Mortality (< 3%)
Automatic PP manure belts running beneath each tier remove waste daily. This eliminates bird contact with feces, keeping the poultry house dry and significantly reducing toxic ammonia levels and disease risks.
Heavy-Duty Durable Structure
The entire frame is constructed from international Q235 Hot-Dip Galvanized Steel. With a zinc coating density of up to 275g/m², it offers 15-20 years of lifespan, easily withstanding harsh, corrosive tropical and ammonia environments.
Fully Integrated Automated Sub-Systems

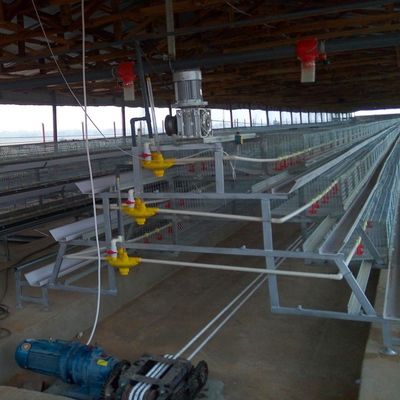

1. Smart Broiler Feeding System
Specialized round feed pans or longitudinal feeding hoppers designed to prevent feed spillage and wastage. The feeding line height is easily adjustable to accommodate the rapid growth of chicks from Day 1 to market day.

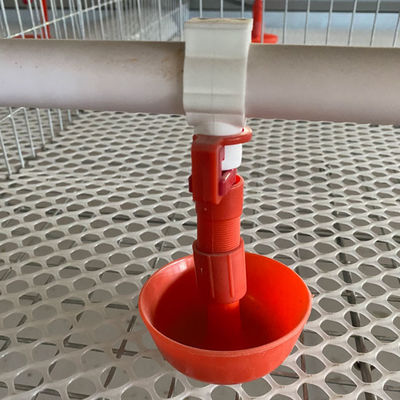

2. Hygienic Nipple Drinking System
360° stainless steel nipple drinkers equipped with double-sealing water valves and water drip cups to keep the manure dry. Includes a precise water medication medicator and pressure regulator for uniform flock hydration.
3. Automatic Manure Removal System
Thick, heavy-duty Polypropylene (PP) conveyor belts under each tier guarantee continuous waste removal, keeping the indoor air fresh and clean 24/7.
4. Smart Climate & Ventilation System
Connects negative-pressure exhaust fans, cooling pads, and air inlets to an intelligent environmental controller, strictly maintaining the optimum temperature and humidity needed for maximum growth weight.
Frequently Asked Questions
Q: How many broilers can a 4-tier H-type cage system hold?
A: The capacity depends on the specific cage dimensions and your target market weight (e.g., 1.5kg vs 2.5kg). Generally, an H-type system can increase your farm's housing capacity by over 200% compared to deep litter systems. Contact our engineers for a precise capacity calculation.
Q: Do you provide poultry house layout designs?
A: Yes! We provide free designs tailored to your land size and local climate conditions.
